Aluminum Nitride Powder CAS 24304-00-5

这里可以自定义设置
Aluminum Nitride Powder CAS 24304-00-5
B站不支持收货地址
B站不支持库存规格
Product name:
Aluminum Nitride Powder CAS 24304-00-5
Brand:
Entrepreneur
Cas No.:
24304-00-5
Purity:
93% min
Country of Origin:
China
Appearance:
White or grayish white powder
Delivery Time:
Within 3-10 working days according to the quantity
Other names:
AlN Powder
Aluminum Nitride Granule
参数暂无数据
多属性暂无数据
B站不支持优惠卷

Add success, do you want to check your shopping cart?

暂无分享
B站不支持产品保障
该产品后台详情无内容

Description

Aluminum Nitride Powder is a high-performance ceramic material with excellent thermal and electrical conductivity properties. It is composed of aluminum and nitrogen atoms, forming a hexagonal crystal structure. The powder is produced through various synthesis methods, including chemical vapor deposition and carbothermal reduction.

Aluminum Nitride Powder is known for its exceptional thermal conductivity, which is even higher than that of alumina and many other ceramic materials. This property makes it highly suitable for applications that require efficient heat dissipation, such as electronic components, power devices, and thermal interface materials.

In addition to its thermal conductivity, Aluminum Nitride Powder also exhibits excellent electrical insulation properties, high mechanical strength, and good chemical stability. These characteristics make it a versatile material used in the production of substrates, heat sinks, substrates for integrated circuits, LED packaging, and microwave components.

Furthermore, Aluminum Nitride Powder is often utilized as a filler or additive in composite materials to enhance their thermal conductivity. The powder can be processed into various forms, including coatings, films, ceramics, and molded parts, to meet the specific requirements of different applications.

Overall, Aluminum Nitride Powder is a valuable material in the field of advanced ceramics, offering a unique combination of thermal and electrical properties that make it indispensable in numerous industries.

Features

  High thermal conductivity (about 10 times that of alumina).

❷ Close to the thermal expansion coefficient of silicon.

❸ High electrical insulation.

❹ High strength (higher than alumina).

❺ Corrosion resistance (not wetted on almost all molten metals).

❻ High purity (no contamination of molten metal even at high temperature).

❼ It has light transmittance (it can pass through visible light ~ infrared ray)

❽ It has halogen resistance ionic properties.

Applications

这里可以自定义设置

Specifications

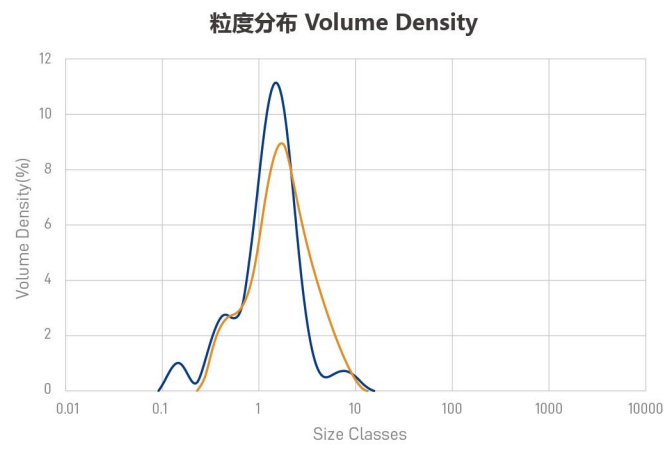

GradeN content (%)AL content (%)O content(%)C (ppm) Fe(ppm)Ca(ppm)Si (ppm)D50    (μm)

Specific

surface area (m2/g)

A-1>33.0>63.6≤0.95≤350≤20≤100≤50<1.5>3.0
A-2>32.5>62.0≤1.35≤400≤30≤300≤70<1.7>2.0
A-3>32.0>61.7≤1.75≤500≤70≤600≤100<2.5>1.0
A-7>32.5>62.0≤1.50≤500≤40≤450≤80<2.0>1.5
这里可以自定义设置

About Packaging

Storage

Store in a tightly closed container. Store in a cool, dry, well-ventilated area, keep away from incompatible substances. Storage under a nitrogen blanket has been recommended. Kept from moisture.

Package

25kg/drum or as your special request.
